AVENIR精工 SL86154PIR 工业镜头
| Model No | SL86154AIR | SL86154PIR | SL86154MIR | ||
| Image Format Cover | 1/2" ～ 1/3" | ||||
| 焦点距离 | 8.6 ～ 154 mm | ||||
| Zoom Ratio 倍数 | 17.9 倍 | ||||
| MAX光圈比率 | 1 : F2.5 | ||||
| Iris光圈 | 操作 | 视频驱动 | 电机拉动 | ||
| Iris Range | F2.5 ～ 360 | F1.5 ～CLOSE or 360 | |||
| 速度 | 2 S | ||||
| 输入电压 | DC 8 ～ 16V Max. 30mA | DC 12V Max. 50mA | |||
| 灵敏度调整 | 0.5 ～ 1.0VP-P | * * * | |||
| Focus 焦点 | 控制方式 | 电动 | 电动／预置 | 电动 | |
| 速度 | 3.5 S | ||||
| 输入电压 | DC 12V Max. 50mA | ||||
| ZOOM 变焦 | 控制方式 | 电动 | 电动／预置 | 电动 | |
| 速度 | 3.5 S | ||||
| 输入电压 | DC 12V Max. 50mA | ||||
| Angle Field of View (D×H×V) | 1/3 inch | Wide | 38.3° × 30.9° × 23.3° | ||
| Tele | 2.3° × 1.8° × 1.4° | ||||
| 1/2 inch | Wide | 49.9° × 40.7° × 30.9° | |||
| Tele | 3.0° × 2.4° × 1.8° | ||||
| 2/3 inch | Wide | * * * | |||
| Tele | * * * | ||||
| 1 inch | Wide | * * * | |||
| Tele | * * * | ||||
| Minimum Object Distance | 2.5 m | ||||
| Back Focal Length | 14.2 mm | ||||
| Effective Diameter | Front | φ55.6 mm | |||
| Rear | φ11.5 mm | ||||
| Filter Screw size | M62.0 P=0.75 | ||||
| Mount / Flange Back | C / 17.526mm | ||||

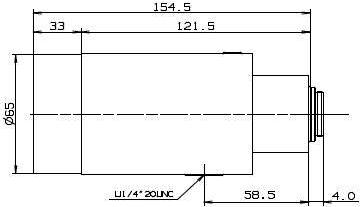

| Mechanical Dimension (W×H×L) | 75.5mm × 66.0mm × 128.5mm | ||||
| Weight | 850g | 880 g | 830 g | ||
| Application Temperature Range | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
