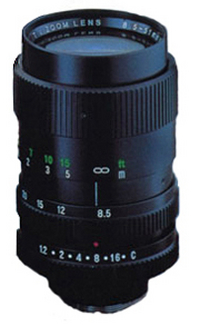

AVENIR精工 SL08551 工业镜头
| Model No | SL08551 | | Image Format Cover | 1/2" ～ 1/3" | | 焦点距离 | 8.5 ～ 51 mm | | MAX光圈比率 | 1 : 1.2 | | Zoom Ratio 变焦倍数 | 6.0 倍 | | Iris光圈 | Control Method | 手动 | | Iris Range | F1.2 ～ Close | | 速度 | * * * | | Input Voltage & Current | * * * | | Sensitivity Adjustment | * * * | | Focus 焦点 | 控制方式 | 手调 | | Zoom 变焦 | 控制方式 | 手调 | 视角
(D×H×V) | 1/3 inch | Wide | 38.8° × 31.3° × 23.6° | | Tele | 6.8° × 5.5° × 4.1° | | 1/2 inch | Wide | 50.7° × 41.2° × 31.3° | | Tele | 8.9° × 7.2° × 5.5° | | 2/3 inch | Wide | * * * | | Tele | * * * | | 1 inch | Wide | * * * | | Tele | * * * | | Minimum Object DistanceMIN可视距离 | 1.0 m | | Back Focal Length 后焦长度 | 12.55 mm | | Effective Diameter | Front 前部 | φ44.0 mm | | Rear 后部 | φ11.7 mm | | Filter Screw size | M52.0 P=0.75 | | Mount | C / 17.526mm | | Mechanical Dimension(D×L)机械尺寸 | φ58.8mm × 93.4mm | | Weight重量 | 440.0g | | 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) |
|
