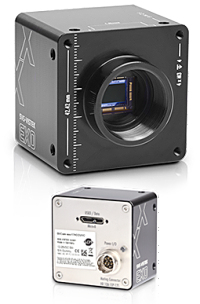

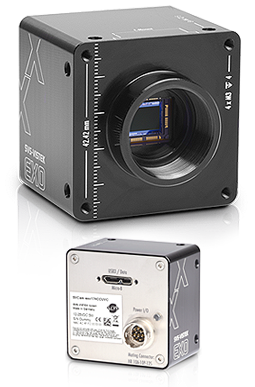

SVS-Vistek视微力科 exo901MU3 工业相机

请注意：本产品尚处于初步阶段。技术规格可能会发生变化。
规格
分辨率 [MP]	16.4 万像素
分辨率 (hxv)	8016 x 2048 像素
帧速率（最大）	5 fps
Chroma	mono
Interface	USB3 Vision (Micro-B)
Sensor
Sensor	IMX901-AMR
Manufacturer	Sony
Sensor type	Area CMOS
Shutter type	global shutter
Sensor size (h x v)	21.96 x 5.61 mm
Optical diagonal	22.67 mm
Sensor format	22.7mm (1.4)
Pixel size (h x v)	2.74 x 2.74 µm
Camera
Exposure modes	MANUAL;AUTO;EXTERNAL
Trigger modes	INTERNAL;SOFTWARE;EXTERNAL
Exposure time (min)	5 µs
Exposure time (max)	10 sec (external ∞)
Pixel format / max	mono8, mono12packed / 12 bit
Gain modes	manual, auto
Internal memory	256 MB SDRAM, 32 MB Flash
Feature Set
AOI	yes
LUT	yes
Offset	yes
Binning	yes
Image flip	yes
Shading correction	yes
Defect pixel correction	yes
Sequencer	yes
Housing
Lens mount	C-Mount
Dimensions (w x h x d)	50 x 50 x 42.7 mm
Weight	140 g
Operating temperature (housing)	-10 to 65 °C
Ambient humidity	10 to 90 % (non-condensing)
Protection class	IP40

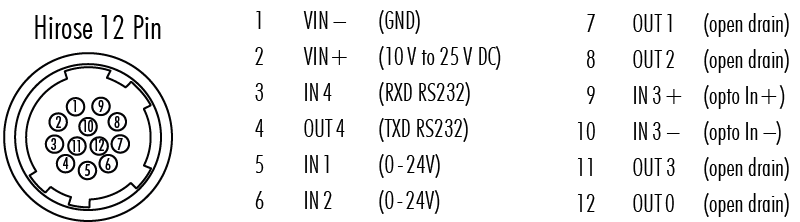

I/O-Interfaces
Input up to 24V	2 x
Input OPTO	1 x
输出开漏	4 x
输入/输出 RS-232	1 x
电源	10 至 25 V（直流）
功耗	5 W （取决于操作模式）
