AVENIR精工 SL 12240P 工业镜头
| Model No | SL 12240G | SL 12240P | SL 12240GNB | ||
| Image Format Cover | 1/2" ～ 1/3" | ||||
| 焦点距离 | 12 ～ 240 mm | ||||
| MAX光圈比率 | 1 : 2.2 | ||||
| Iris光圈 | 操作 | 视频驱动 | 直流驱动 | ||
| Iris Range | F2.2 ～ 360 | ||||
| 速度 | 0.3 S | 0.4 S | |||
| 输入电压 | DC 8 ～ 16V Max. 30mA | DC 12V Max. 50mA | |||
| 灵敏度调整 | 0.5 ～ 1.0VP-P | * * * | |||
| Focus 焦点 | 控制方式 | 电动 | 电动／预置 | 电动 | |
| 速度 | 0.4 S | ||||
| 输入电压 | DC 12V Max. 50mA | ||||
| ZOOM 变焦 | 控制方式 | 电动 | 电动／预置 | 电动 | |
| 速度 | 0.4 S | ||||
| 输入电压 | DC 12V Max. 50mA | ||||
| Angle Field of View (D×H×V) | 1/3 inch | Wide | 27.5° × 22.2° × 16.7° | ||
| Tele | 1.5° × 1.2° × 0.9° | ||||
| 1/2 inch | Wide | 37.0° × 29.7° × 22.4° | |||
| Tele | 1.9° × 1.6° × 1.2° | ||||
| 2/3 inch | Wide | * * * | |||
| Tele | * * * | ||||
| 1 inch | Wide | * * * | |||
| Tele | * * * | ||||
| Minimum Object Distance | 1.5 m | ||||
| Back Focal Length | 14.73 mm | ||||
| Effective Diameter | Front | φ57.0 mm | |||
| Rear | φ13.8 mm | ||||
| Filter Screw size | M62.0 P=0.75 | ||||
| Mount / Flange Back | C / 17.526mm | ||||

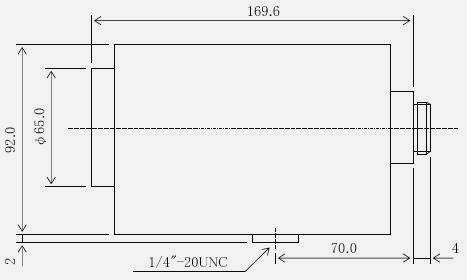

| Mechanical Dimension (W×H×L) | 78.0mm × 92.0mm × 169.6mm | ||||
| Weight | 970.0g | ||||
| Application Temperature Range | 0°C ～ +50°C | ||||
